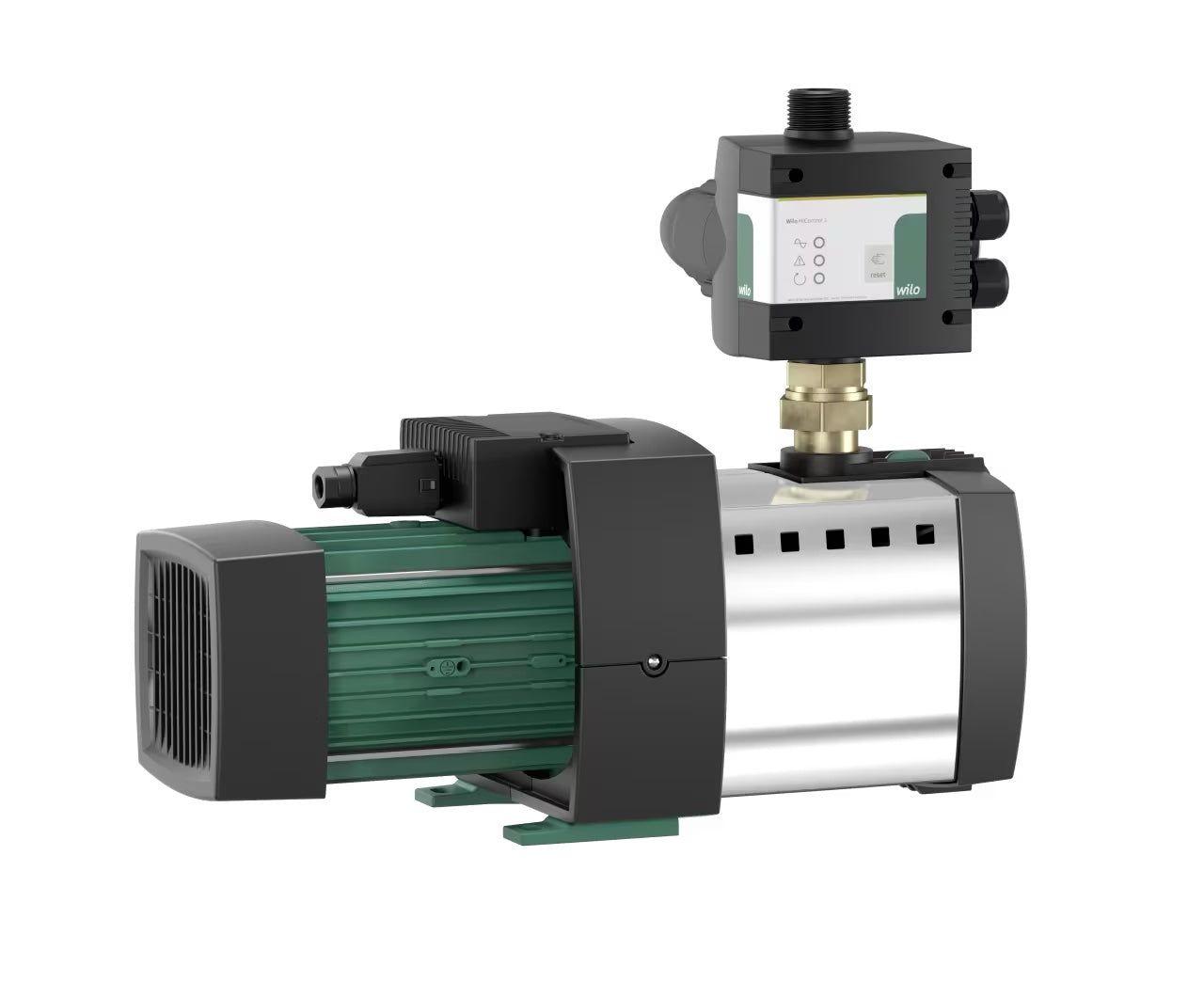

Wilo Multi Stage Centrifugal Pump HiMulti 3C1-44

Multistage, horizontal centrifugal pump in glanded pump design, self-priming, with directly flanged motor and automatic pump control HiControl 1. The shaft bushing is sealed by a maintenance-free, force-flushed mechanical seal.

2-pole single-phase motor with threaded cable gland, capacitor in the connection box, motor protection switch with automatic reactivation, low-water cut-out switchgear.

Scope of delivery

• Pump
• HiControl 1 pump control
• Two plastic connectors with seals for manually connecting to the inlet pipe
• A quick electrical connection
• Installation and operating instructions
