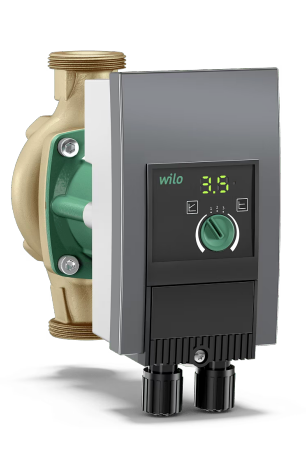

This electronically controlled, Glandless circulator, synchronous motor with ECM technology and integrated power control for continuous differential pressure control.
- Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Compact design
- Signature Wilo green knob ensures an easy handling of the pump.
For flange-end pumps - flange versions:
- Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
